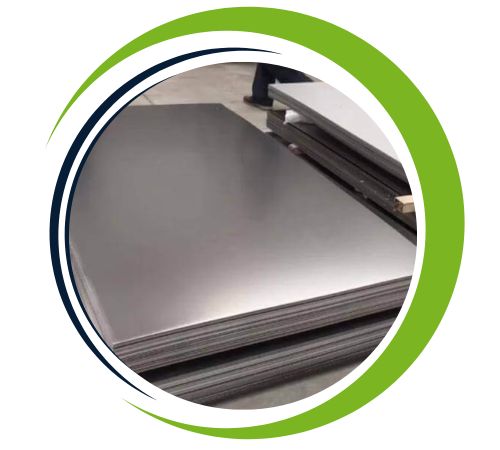

Hashmi Sheets and Plates, based in Doha, Qatar, is a trusted manufacturer and supplier of high-performance alloy products for demanding industrial applications. Among its premium offerings are Hastelloy C276 Sheets and Plates, known for exceptional corrosion resistance and strength in extreme environments. Manufactured in compliance with international standards and stringent quality controls, these sheets and plates are ideal for aggressive chemical and high-temperature services. Serving industries such as chemical processing, oil and gas, power generation, and marine engineering, Hashmi delivers reliable alloy solutions that ensure long-term durability, safety, and superior performance in critical operating conditions.
Hastelloy C276 sheets and plates are composed of approximately 57% nickel, 15-17% molybdenum, 14.5-16.5% chromium, 4-7% iron, and 3-4.5% tungsten, with small amounts of cobalt, manganese, and silicon. This advanced composition provides exceptional resistance to corrosion, including pitting and crevice corrosion in harsh chemical environments. The mechanical properties include a tensile strength of 100 ksi (690 MPa), yield strength of 45 ksi (310 MPa), and elongation of 40-50%, making it highly durable and resilient under stress. These properties make Hastelloy C276 sheets and plates ideal for demanding applications in chemical processing, marine environments, and high-temperature systems.

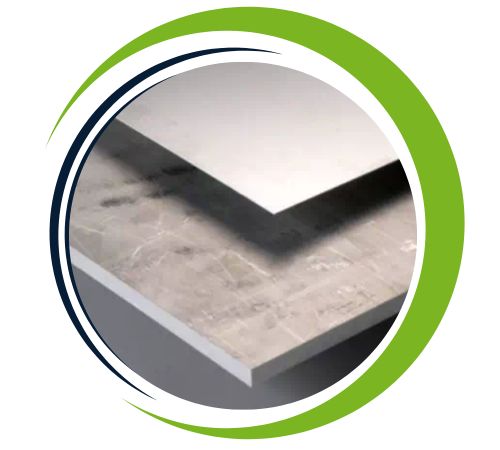

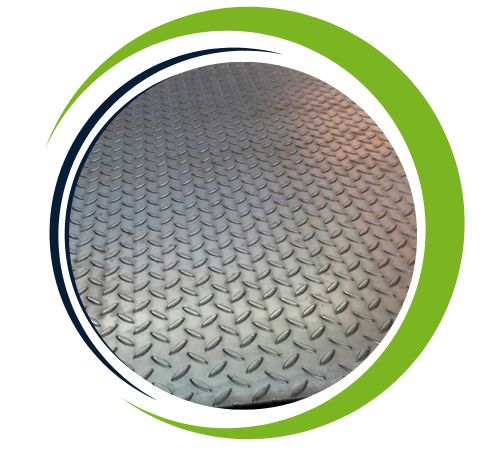

| Type | Plate, Sheet, Strip, Coils, Foils, Flats, Clad Plate, Plain Sheet, Rolling Sheet, Rolling Plate, Flat Shim, Flat Sheet, Shim Sheet, Rolls, Blank (Circle), sheared, annealed, soft annealed, descaled, tread plate, Checker Plate |
|---|---|
| Grade | Hastelloy C276 – ALLOY C-276 (Ni/ 15Cr/ 16Mo/ 4W)-UNS N10276 , ASTM B575 UNS N10276 |
| UNS N10276 Plate Length | 0-12mm or as required |
| Specification of Alloy C276 Plate | ASTM B575 UNS N10276, ASME SB575, MSRR, BS, AMS 4544 sheet |
| ASTM B575 Alloy C276 Plate Width | 0-2500mm or as required |
| Plate Thickness | 0.3 to 1200 mm or as required |
| C276 Hastelloy Plate Process | Hot/ Cold Rolled |
| Plate surface | No.1, No. 2D, No. 2B, BA, No.3, No.4, No.6, No.7, 2B, 2D, BA NO(8), Cold rolled sheet (CR), Hot rolled plate (HR), SATIN (Met with Plastic Coated), No.1 finish hot rolled ASTM B575 Alloy C276 Plate, 1D, 2B, No.4, BA, 8K, satin, hairline, brush, mirror etc. |
| Grade | C | Mn | And | S | Co | In | Cr | Fe | Mo | P |
| C276 | 0.010 max | 1.00 max | 0.08 max | 0.03 max | 2.50 max | 50.99 min* | 14.50 – 16.50 | 4.00 – 7.00 | 15.00 – 17.00 | 0.04 max |
| Element | Density | Melting Point | Tensile Strength | Yield Strength (0.2%Offset) | Elongation |
| Hastelloy C276 | 8.89 g/cm3 | 1370 °C (2500 °F) | Psi – 1,15,000, MPa – 790 | Psi – 52,000, MPa – 355 | 40 % |
| Material | Ultimate Tensile (min) | Yield Strength (Min) | Elongation % | Hardness Rb | ||
|---|---|---|---|---|---|---|
| Ksi | Mpa | Ksi | Mpa | |||
| C276 Plate | 107.4 | 741 | 50.3 | 347 | 67 | 89 |
| C276 Sheet | 115.5 | 796 | 54.6 | 376 | 60 | 86 |
|
Stocked Sizes |
|
|---|---|
|
Size (in inches) |
Size (in mm) |
|
.125″ |
3.18mm |
|
.134″ |
3.40mm |
|
.156″ |
3.96mm |
|
.187″ |
4.75mm |
|
.250″ |
6.35mm |
|
.312″ |
7.92mm |
|
.375″ |
9.53mm |
|
.500″ |
12.7mm |
|
.600″ |
15.9mm |
|
.750″ |
19.1mm |
|
.875″ |
22.2mm |
|
1″ |
25.4mm |
|
1.125″ |
28.6mm |
|
1.250″ |
31.8mm |
|
1.500″ |
38.1mm |
|
1.750″ |
44.5mm |
|
2″ |
50.8mm |
|
2.500″ |
63.5mm |
|
3″ |
76.2mm |
We provide products that come with both mill test certificates and third-party test certificates, ensuring the highest standards of quality and compliance.
Hastelloy C276 sheets and plates offer exceptional advantages, making them ideal for challenging industrial environments. They provide outstanding resistance to a wide range of corrosive media, including strong oxidizers, reducing agents, and chlorides, minimizing the risk of pitting, crevice corrosion, and stress corrosion cracking. Their high-temperature strength and excellent weldability ensure reliability in critical applications, such as chemical processing and marine systems. Additionally, Hastelloy C276 maintains superior performance in both acidic and alkaline environments, offering durability, extended service life, and reduced maintenance, even under extreme conditions, enhancing operational efficiency and safety.
| Thickness | Plate Weight per Unit Area | Density |
|---|---|---|
| 3/16 inches | 0.06000 lbs/in²42.184176 kg/m² | 0.315 lbs/in³8.72 g/cm³ |
| 1/4 inches | 0.08 lbs/in²56.245568 kg/m² | 0.315 lbs/in³8.72 g/cm³ |
| 3/8 inches | 0.121 lbs/in²85.0714216 kg/m² | 0.315 lbs/in³8.72 g/cm³ |
| 1/2 inches | 0.161 lbs/in²113.1942056 kg/m² | 0.315 lbs/in³8.72 g/cm³ |
| 5/8 inches | 0.196 lbs/in²137.8016416 kg/m² | 0.315 lbs/in³8.72 g/cm³ |
| 3/4 inches | 0.235 lbs/in²165.221356 kg/m² | 0.315 lbs/in³8.72 g/cm³ |
| 7/8 inches | 0.274 lbs/in²192.6410704 kg/m² | 0.315 lbs/in³8.72 g/cm³ |
| 1 inches | 0.313 lbs/in²220.0607848 kg/m² | 0.315 lbs/in³8.72 g/cm³ |
| 1 1/4 inches | 0.391 lbs/in²274.9002136 kg/m² | 0.315 lbs/in³8.72 g/cm³ |
| 1 1/2 inches | 0.47 lbs/in²330.442712 kg/m² | 0.315 lbs/in³8.72 g/cm³ |
| 1 3/4 inches | 0.549 lbs/in²385.9852104 kg/m² | 0.315 lbs/in³8.72 g/cm³ |
| 2 inches | 0.627 lbs/in²440.8246392 kg/m² | 0.315 lbs/in³8.72 g/cm³ |
| 2 1/4 inches | 0.705 lbs/in²495.664068 kg/m² | 0.315 lbs/in³8.72 g/cm³ |
| 2 1/2 inches | 0.784 lbs/in²551.2065664 kg/m² | 0.315 lbs/in³8.72 g/cm³ |
| 2 3/4 inches | 0.862 lbs/in²606.0459952 kg/m² | 0.315 lbs/in³8.72 g/cm³ |
| 3 inches | 0.941 lbs/in²661.5884936 kg/m² | 0.315 lbs/in³8.72 g/cm³ |
Hastelloy C276 sheets and plates are widely used in industries requiring superior corrosion resistance and durability. They are essential in chemical processing for fabricating reactors, heat exchangers, evaporators, and scrubbers exposed to harsh chemicals like hydrochloric acid and sulfuric acid. In the marine industry, they are used for components in seawater systems due to their resistance to pitting and crevice corrosion. Additionally Hastelloy C276 is employed in pollution control systems, flue gas scrubbers, and power plants. Its high-temperature strength also makes it ideal for aerospace and pharmaceutical applications.
