Hashmi Sheets and Plates, located in Doha, Qatar, has earned a solid reputation as a reliable manufacturer and supplier of Hastelloy B2 Sheets and Plates, specifically designed for demanding industrial applications. The company is well-regarded for providing top-notch products that excel in resisting harsh environments and corrosive chemicals. They offer Hastelloy B2 Sheets and Plates in a variety of sizes, thicknesses, and specifications to cater to the needs of the chemical processing, petrochemical, and engineering sectors. With cutting-edge manufacturing technology, rigorous quality control measures, and a dedication to excellence, Hashmi Sheets and Plates guarantees consistent performance, durability, and a long lifespan even in extreme conditions.
Hastelloy B2 Sheets and Plates are primarily made of nickel, with notable amounts of molybdenum and trace elements of iron. This distinctive alloy composition gives them impressive mechanical properties, including strong tensile strength, high toughness, and remarkable resistance to hydrochloric acid and other reducing agents. When handled with the right procedures, the material also offers good fabricability and weldability. Hastelloy B2 maintains its structural integrity at high temperatures, ensuring reliable performance in challenging chemical and thermal environments.

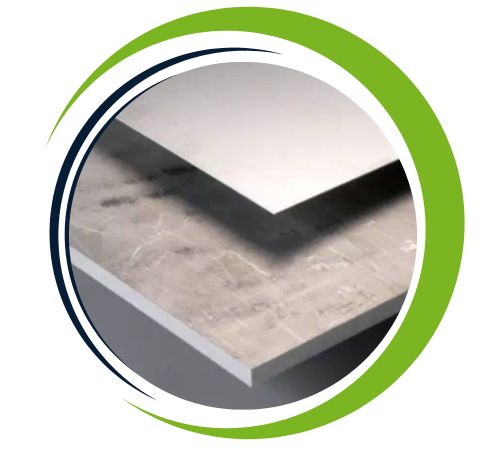

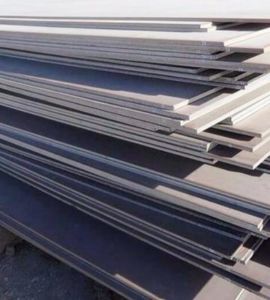

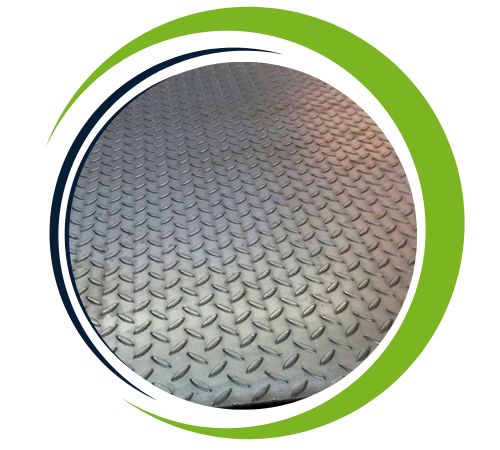

| Type | Plate, Sheet, Strip, Coils, Foils, Flats, Clad Plate, Plain Sheet, Rolling Sheet, Rolling Plate, Flat Shim, Flat Sheet, Shim Sheet, Rolls, Blank (Circle), sheared, annealed, soft annealed, descaled, tread plate, Checker Plate |
|---|---|
| Grade | ASME SB333, ASTM B333 UNS N10665, ASTM B333 UNS N010675, AMS, MSRR, BS |
| Length | 0-12mm or as required |
| Specification of ASTM B333 Alloy B2 Plate | ASTM B333 UNS N10665, ASME SB333, MSRR, BS, AMS 4544 sheet |
| Alloy B2 Plate Width | 0-2500mm or as required |
| UNS N10665 Plate Thickness | 0.3 to 1200 mm or as required |

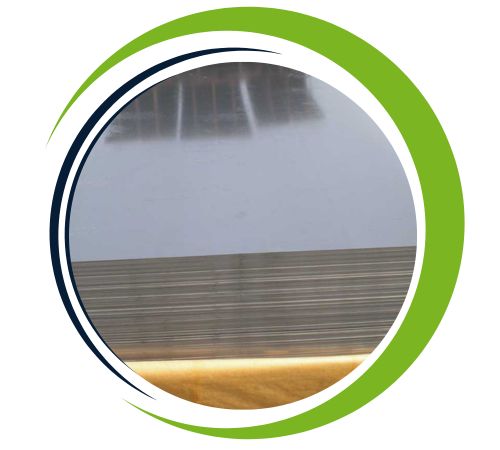

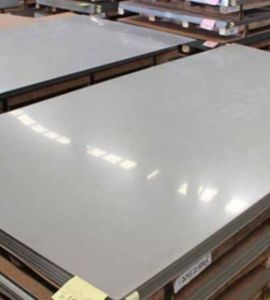

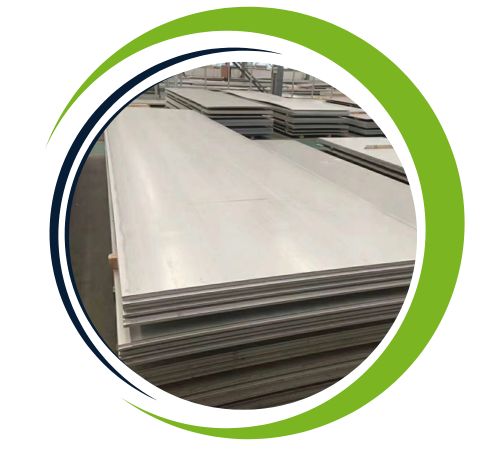

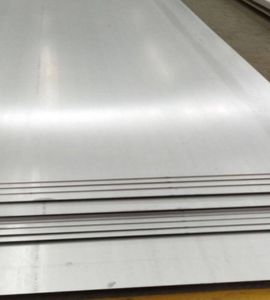

| Plate Process | Hot/ Cold Rolled |
| Plate surface | No.1, No. 2D, No. 2B, BA, No.3, No.4, No.6, No.7, 2B, 2D, BA NO(8), Cold rolled sheet (CR), Hot rolled plate (HR), SATIN (Met with Plastic Coated), No.1 finish hot rolled ASTM B333 Alloy B2 Plate, 1D, 2B, No.4, BA, 8K, satin, hairline, brush, mirror etc. |
| Alloy B2 | Ni | C | Mo | Mn | Si | Fe | P | S | Co | Cr |
| Balance | 0.02 max | 26 – 30 | 1.00 max | 0.1 max | 2.0 max | 0.04 max | 0.03 max | 1.0 max | 1.0 max |
| Grade | Density | Melting Point | Yield Strength (0.2%Offset) | Tensile Strength | Elongation |
| Alloy B2 | 9.2 g/cm3 | 1370 °C (2500 °F) | Psi – 51000 , MPa – 350 | Psi – 1,10,000 , MPa – 760 | 40 % |
| STANDARD | UNS | WERKSTOFF NR. | AFNOR | EN | JIS | BS | GOST |
| Alloy B2 | N10665 | 2.4617 | – | – | – | – | – |
|
Stocked Sizes |
|
|---|---|
|
Size (in inches) |
Size (in mm) |
|
.125″ |
3.18mm |
|
.134″ |
3.40mm |
|
.156″ |
3.96mm |
|
.187″ |
4.75mm |
|
.250″ |
6.35mm |
|
.312″ |
7.92mm |
|
.375″ |
9.53mm |
|
.500″ |
12.7mm |
|
.600″ |
15.9mm |
|
.750″ |
19.1mm |
|
.875″ |
22.2mm |
|
1″ |
25.4mm |
|
1.125″ |
28.6mm |
|
1.250″ |
31.8mm |
|
1.500″ |
38.1mm |
|
1.750″ |
44.5mm |
|
2″ |
50.8mm |
|
2.500″ |
63.5mm |
|
3″ |
76.2mm |
We provide products that come with both mill test certificates and third-party test certificates, ensuring the highest standards of quality and compliance.
Hastelloy B2 sheets and plates offer exceptional advantages particularly in highly corrosive environments. Known for their superior resistance to hydrochloric acid, sulfuric acid, and other aggressive chemicals, they are ideal for chemical processing, storage, and handling systems. Their high strength and excellent resistance to pitting, crevice corrosion, and stress corrosion cracking ensure long-lasting performance. Additionally, Hastelloy B2 provides outstanding weldability and formability making it easy to fabricate for complex applications. Its ability to maintain structural integrity under extreme conditions reduces maintenance and downtime, enhancing operational efficiency in industries such as pharmaceuticals, chemical and petrochemical.
| Thickness | Plate Weight per Unit Area | Density |
|---|---|---|
| 3/16 inches | 0.06000 lbs/in²42.184176 kg/m² | 0.315 lbs/in³8.72 g/cm³ |
| 1/4 inches | 0.08 lbs/in²56.245568 kg/m² | 0.315 lbs/in³8.72 g/cm³ |
| 3/8 inches | 0.121 lbs/in²85.0714216 kg/m² | 0.315 lbs/in³8.72 g/cm³ |
| 1/2 inches | 0.161 lbs/in²113.1942056 kg/m² | 0.315 lbs/in³8.72 g/cm³ |
| 5/8 inches | 0.196 lbs/in²137.8016416 kg/m² | 0.315 lbs/in³8.72 g/cm³ |
| 3/4 inches | 0.235 lbs/in²165.221356 kg/m² | 0.315 lbs/in³8.72 g/cm³ |
| 7/8 inches | 0.274 lbs/in²192.6410704 kg/m² | 0.315 lbs/in³8.72 g/cm³ |
| 1 inches | 0.313 lbs/in²220.0607848 kg/m² | 0.315 lbs/in³8.72 g/cm³ |
| 1 1/4 inches | 0.391 lbs/in²274.9002136 kg/m² | 0.315 lbs/in³8.72 g/cm³ |
| 1 1/2 inches | 0.47 lbs/in²330.442712 kg/m² | 0.315 lbs/in³8.72 g/cm³ |
| 1 3/4 inches | 0.549 lbs/in²385.9852104 kg/m² | 0.315 lbs/in³8.72 g/cm³ |
| 2 inches | 0.627 lbs/in²440.8246392 kg/m² | 0.315 lbs/in³8.72 g/cm³ |
| 2 1/4 inches | 0.705 lbs/in²495.664068 kg/m² | 0.315 lbs/in³8.72 g/cm³ |
| 2 1/2 inches | 0.784 lbs/in²551.2065664 kg/m² | 0.315 lbs/in³8.72 g/cm³ |
| 2 3/4 inches | 0.862 lbs/in²606.0459952 kg/m² | 0.315 lbs/in³8.72 g/cm³ |
| 3 inches | 0.941 lbs/in²661.5884936 kg/m² | 0.315 lbs/in³8.72 g/cm³ |
These Hastelloy B2 Sheets and Plates find extensive use in industries that demand exceptional resistance to reducing acids and harsh chemical conditions. They’re commonly utilized in chemical processing plants, petrochemical facilities, and acid production units. Additionally, these sheets and plates are essential components in heat exchangers, reactors, pressure vessels, storage tanks, and piping systems. Their ability to endure aggressive chemicals and high temperatures makes them perfect for critical industrial equipment. The Hastelloy B2 Sheets and Plates from Hashmi Sheets and Plates deliver dependable performance, long-lasting durability, and efficiency in even the most challenging industrial applications.
