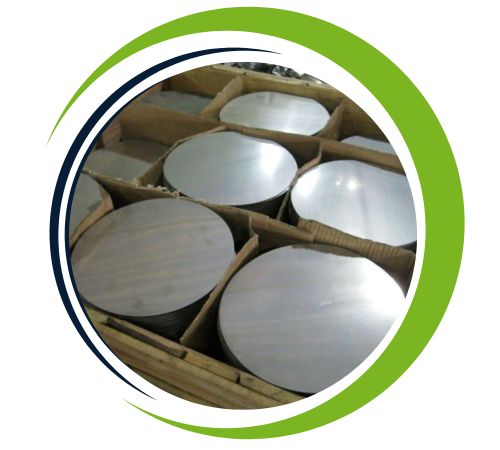

Monel 400 Circles are high-performance nickel–copper alloy components known for their outstanding corrosion resistance and excellent mechanical strength. Designed to perform reliably in harsh environments, these circles offer exceptional resistance to seawater, acids, and alkaline solutions. Monel 400 circles maintain their strength over a wide temperature range and provide good machinability and weldability. Available in various diameters and thicknesses, they are widely used in demanding industrial applications where durability, reliability, and corrosion resistance are critical.
DIN 2.4360 Circle is primarily composed of 63% nickel and 28-34% copper, with small amounts of iron (2.5%), manganese (2%), and carbon (0.3%). This composition gives it exceptional resistance to corrosion, especially in marine and chemical environments. Mechanically Monel 400 exhibits a tensile strength of 550-700 MPa, yield strength of 240-345 MPa, and elongation of 30%, ensuring high durability under stress. It has a melting range of 1300-1350°C and remains stable at elevated temperatures. Its combination of toughness, resistance to pitting and stress corrosion, and excellent thermal conductivity make it ideal for demanding industrial applications.
| Standard | ASTM B127, ASME SB127 |
| Dimensions | ASTM, ASME and API |
| Standard | JIS, AISI, ASTM, GB, DIN, EN, etc. |
| Thickness | 1 Mm To 100 mm. |
| Diameter | Upto 2000 Mm. |
| Circle Diameter | 3″ DIA up to 38″ DIA 1500 lbs max. |
| Circles Form | Cold Rolled, Small Flat, Industrial, Proof Machined, Perforated, Forged Steel, Hot Rolled Circle. |
We provide products that come with both mill test certificates and third-party test certificates, ensuring the highest standards of quality and compliance.
| Grade | Ni | C | Al | Mn | Si | Fe | Cu | S |
| Monel 400 | 63.0 min | 0.3 max | 0.50 max | 2.0 max | 0.5 max | 1.0 – 2.5 | 28.0 – 34.0 | 0.02 max |
| Property | Value |
|---|---|
| Tensile Strength | 70-95 ksi (485-655 MPa) |
| Yield Strength | 30 ksi (205 MPa) min |
| Elongation | 35% min in 2 inches (50 mm) |
| Hardness | Rockwell B70 max |
| Modulus of Elasticity | 28 x 106 psi (193 GPa) |
| Poisson’s Ratio | 0.31 |
Monel 400 is primarily composed of approximately 63–70% nickel and 28–34% copper, with small amounts of iron, manganese, silicon, and carbon. This balanced composition provides high tensile strength, excellent toughness, and resistance to stress corrosion cracking. Monel 400 circles perform well at both low and elevated temperatures and do not become brittle in sub-zero conditions, making them suitable for extreme operating environments.
Yes, we offer custom sizes for Monel 400 Circle to meet specific project needs. Our team at Hashmi Sheets and Plates is dedicated to providing tailored solutions for all your requirements. For more details, contact us at sales@aaronsheetsplates.com.
| Outer Diameter (OD) (mm) | Thickness (mm) | Size (mm) | Approximate Weight (kg) |
|---|---|---|---|
| 100 | 5 | 100 x 5 | 3.92 |
| 150 | 10 | 150 x 10 | 17.66 |
| 200 | 15 | 200 x 15 | 39.26 |
| 250 | 20 | 250 x 20 | 68.83 |
| 300 | 25 | 300 x 25 | 107.36 |
| 350 | 30 | 350 x 30 | 154.87 |
| 400 | 35 | 400 x 35 | 211.35 |
| 450 | 40 | 450 x 40 | 276.80 |
| 500 | 50 | 500 x 50 | 392.70 |
| Property | Value |
|---|---|
| Density | 8.80 g/cm³ |
| Melting Point | 1,455°C (2,651°F) |
| Electrical Resistivity | 0.49 µΩ·cm |
| Thermal Conductivity | 35.4 W/m·K |
| Thermal Expansion (25-100°C) | 13.4 µm/m·K |
| Specific Heat (at 25°C) | 0.385 J/g·K |
| Young’s Modulus | 193 GPa (28 x 10⁶ psi) |
| STANDARD | UNS | WERKSTOFF NR. | AFNOR | EN | JIS | BS | GOST |
|---|---|---|---|---|---|---|---|
| Monel 400 | N04400 | 2.4360 | NU-30M | NiCu30Fe | NW 4400 | NA 13 | МНЖМц 28-2,5-1,5 |
Monel 400 Circles are extensively used in marine engineering, offshore structures, chemical processing equipment, and heat exchangers. They are commonly utilized in pump components, valves, flanges, pressure vessels, and desalination plants. Due to their excellent resistance to saltwater and chemical corrosion, Monel 400 circles are also widely applied in oil & gas, aerospace, and power generation industries.
